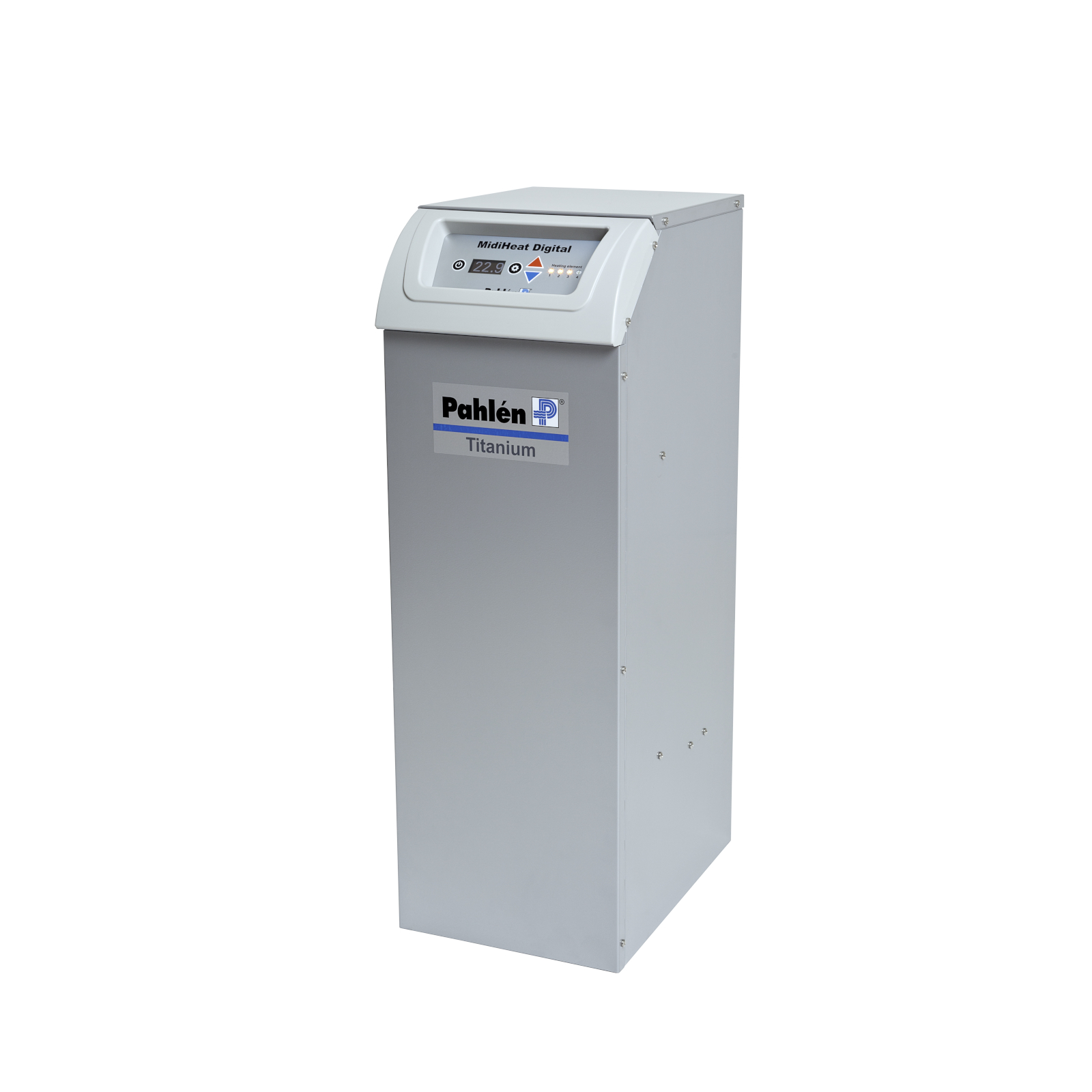

Pahlen MidiHeat Digital Heater 24kW – 1510024T

Login to view prices

SKU: HC-HT-PAH-1511024T
Availability: 0 Out of Stock

MidiHeat Digital 18-72kW

The MidiHeat housing, made of powder-coated galvanized sheet, not only gives the product a very stable structure, but also has a very high resistance to corrosion. The MidiHeat heater thermostat has a temperature range of 8-45 °C. Titanium heating elements provide excellent heat transfer and are completely corrosion resistant. Fast and efficient heater, smart design and modern materials – made for the future!


  • MidiHeat has two built-in contactors for each heating element (TEN) – optimal safety assured;
  • Power range 18-72 kW;
  • Connect up to nine heaters and control them with a master;
  • Made of powder coated galvanized plates, and the heating element cylinder and cover made of high strength fiberglass polypropylene;
  • Titanium heating elements;
  • Equipped with overheating protection and flow sensor for additional safety;
  • The products have been tested and certified in accordance with European standards.

Additional information:

  • MidiHeat works well in both freshwater and electrolytic / salt chlorinated pools
  • MidiHeat is also available in analogue version

Don’t see the model you are looking for? Contact us!

Technical Information – MidiHeat Digital EHD 380-415V/230V

Part No Capacity 3~400V 3~415V
1511018T 18kW = 2 x 9kW 18kW 26A 19.5kW 27A
1511024T 24kW = 2 x 12kW 24kW 35A 26kW 36A
1511030T 30kW = 2 x 15kW 30kW 43A 32kW 45A
1511036T 36kW = 3 x 12kW 36kW 52A 39kW 54A
1511045T 45kW = 3 x 15kW 45kW 66A 49kW 69A
1511060T 60kW = 4 x 15kW 60kW 87A 65kW 90A
1511072T 72kW = 4 x 18kW 72kW 104A 78kW 108A

Connection: Ø63 mm
Minimum flow rate: 170 l / min
Maximum flow rate: 300 l / min
Maximum operating pressure: 2 bar

Digital control panel for MidiHeat Digital

  • Digital thermostat 8-45 ° C;
  • Master / Slave – Connect up nine heaters and control them with one master;
  • Activation delay 5-60 sec. – Adjustable delay time for sequential starting of heating elements;
  • Temperature correction – The ability to manually adjust the display to the actual pool temperature, up to ± 4 ° C;
  • Restore factory settings – An option to reset all user settings;
  • Error codes – Automatic saving of the last 10 error messages.
